851.S1001/2 Stop/Position/Indicator Light

PM-851.S1001 and S1002 series stop, position, indicator light modules, unlit and lit showing amber indicator on top half, red stop position bottom

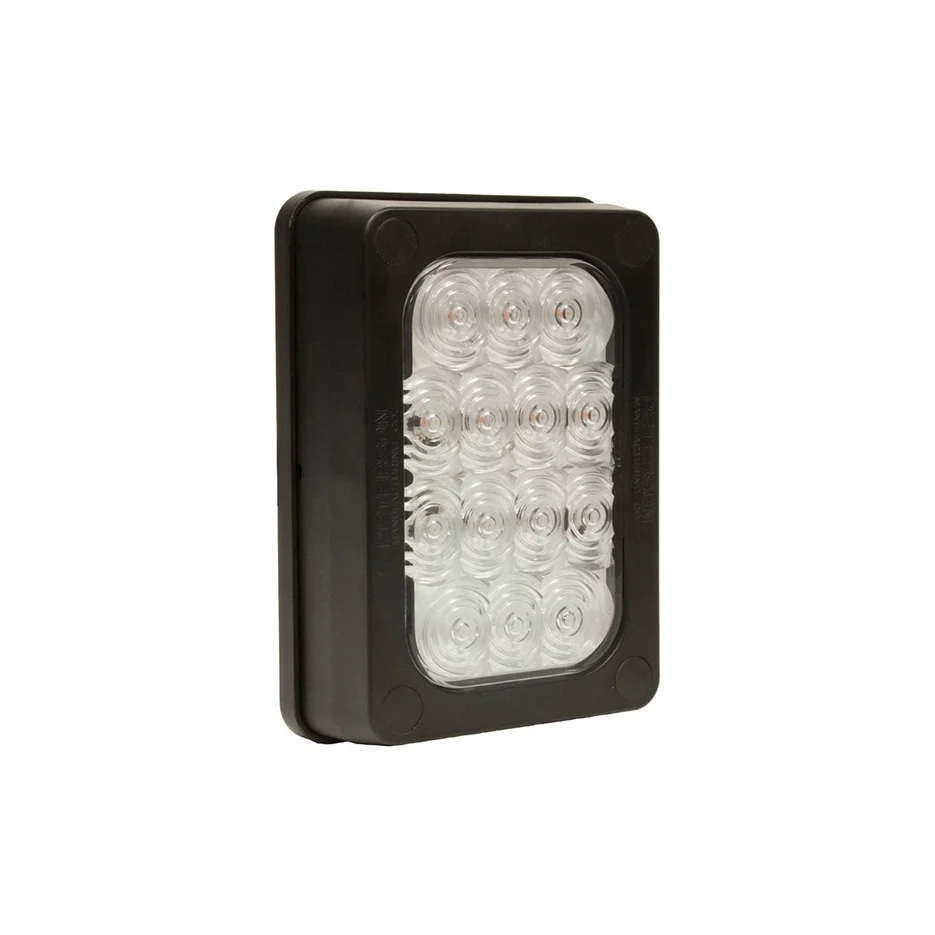

PM-851.S1001 and S1002 series stop, position, indicator light module, unlit showing clear lens

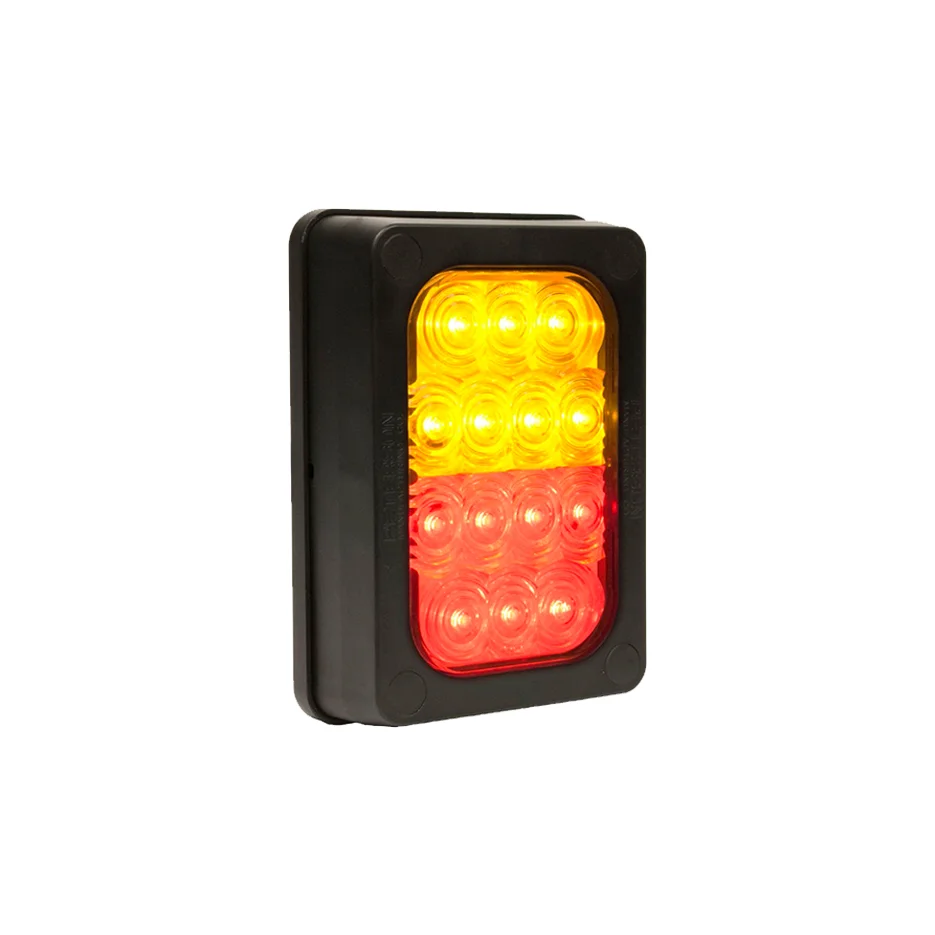

PM-851.S1001 and S1002 series stop, position, indicator light modules, lit showing amber indicator on top half, red stop position bottom
Rear view of PM-851.S1001 stop, position, indicator light showing no load sensor
Rear view of PM-851.S1002 stop, position, indicator light showing load sensor
PM-851.S1001 and S1002 series stop, position, indicator light modules, unlit and lit showing amber indicator on top half, red stop position bottom
PM-851.S1001 and S1002 series stop, position, indicator light module, unlit showing clear lens
PM-851.S1001 and S1002 series stop, position, indicator light modules, lit showing amber indicator on top half, red stop position bottom
Rear view of PM-851.S1001 stop, position, indicator light showing no load sensor
Rear view of PM-851.S1002 stop, position, indicator light showing load sensor

851.S1001/2 Stop/Position/Indicator Light

£0.00

  • ECE certified for all included functions, when mounted horizontally or vertically

  • PM-851.S1001-RC: 1 metre cable terminated in 4-way AMP connector

  • PM-851.S1002-LS-RC: 3 metre cable terminated in 4-way AMP connector

  • Dual voltage 12/24 V

  • IP67 rated

  • Surface mounts with two studs

  • Directional indicator load sensing version available - see PM-851.S1002-LS-RC below

More info >

Quantity:
Add To Cart


Relevant Market Sectors

Additional Information

Part Number

  • PM-851.S1001-RC

    1 metre cable terminated in 4-way AMP connector

    Dual voltage 12/24V

Stop Pos ind Fog Rev Num Mrkr Reflex
✔︎ ✔︎ ✔︎

Directional Indicator Load Sensing Version

  • PM-851.S1002-LS-RC

    3 metre cable terminated in 4-way AMP connector

    24 volt only

Stop Tail Ind Fog Rev Num Mrkr Reflex
✔︎ ✔︎ ✔︎

For further information about this product please contact us
